Torque Tester Hazet

Description

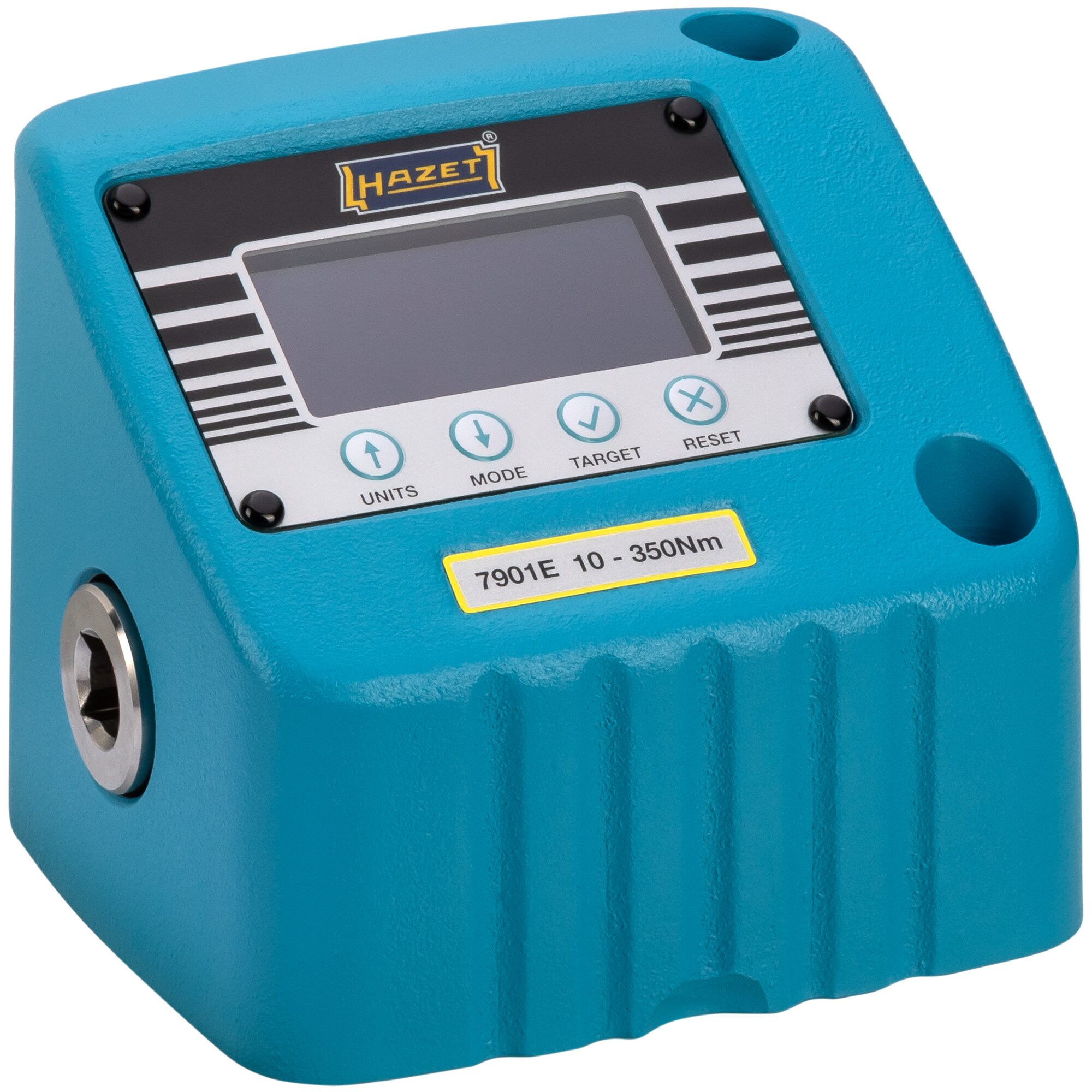

Torque Tester Hazet
Model : 7901E
Make : Hazet

TECHNICAL DATA

Width: 110 mm
Drive: 8
Height: 117 mm
Dimensions / length: 138 mm x 110 mm x 117 mm
Tightening strap height: 350 Nm
Luminous flux 100%: 10 Nm

Application:

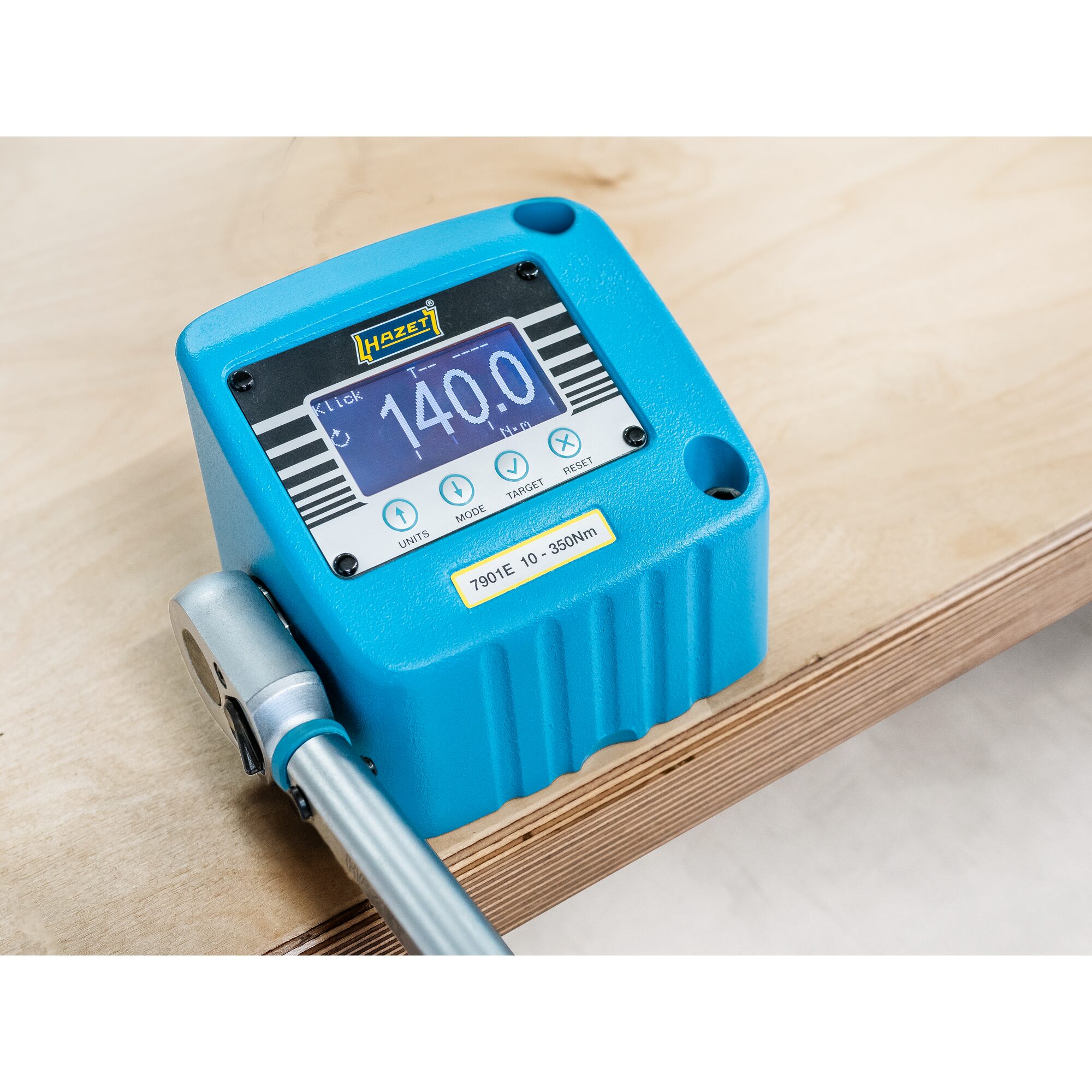

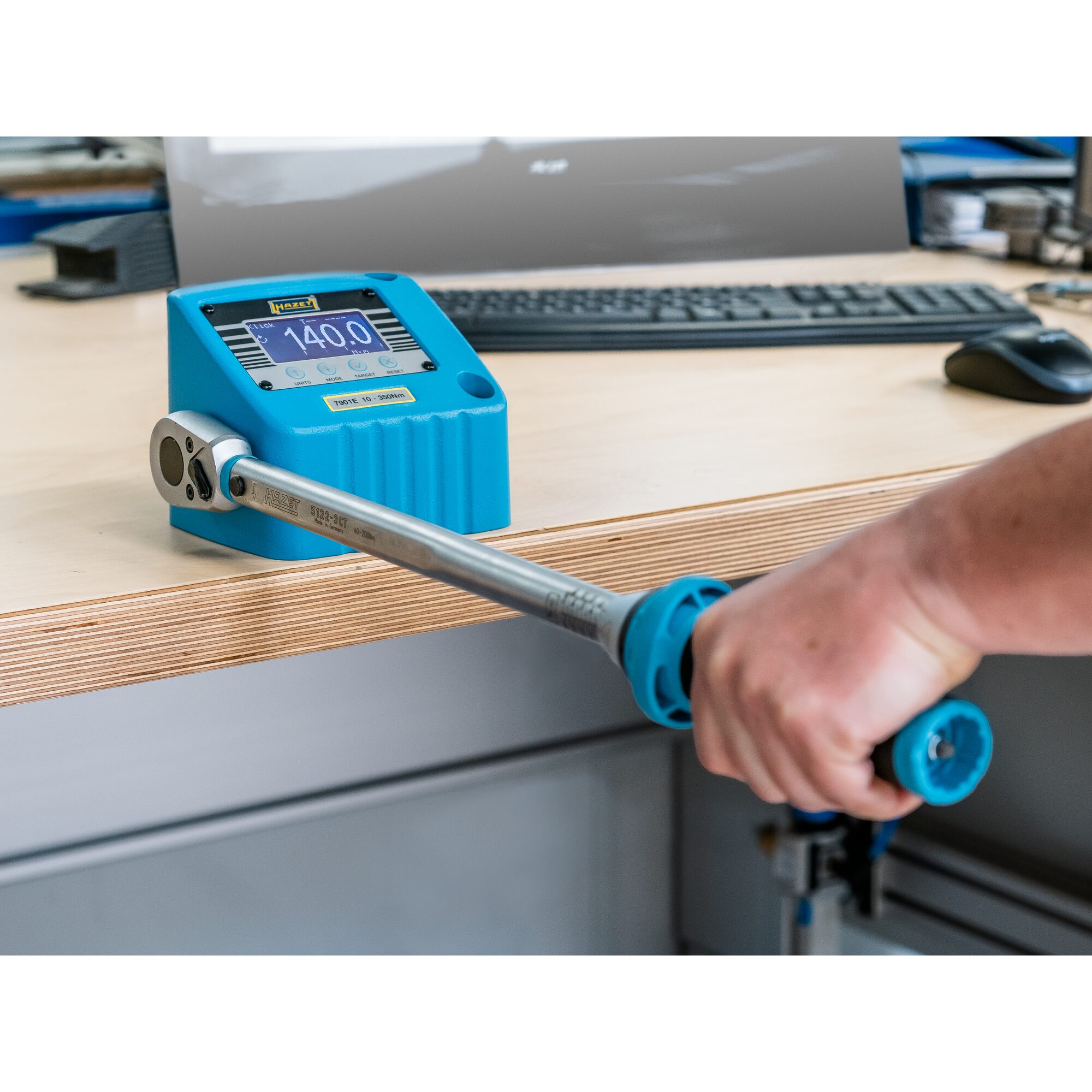

Simple and quick checking of torque wrenches

Simple, intuitive operation

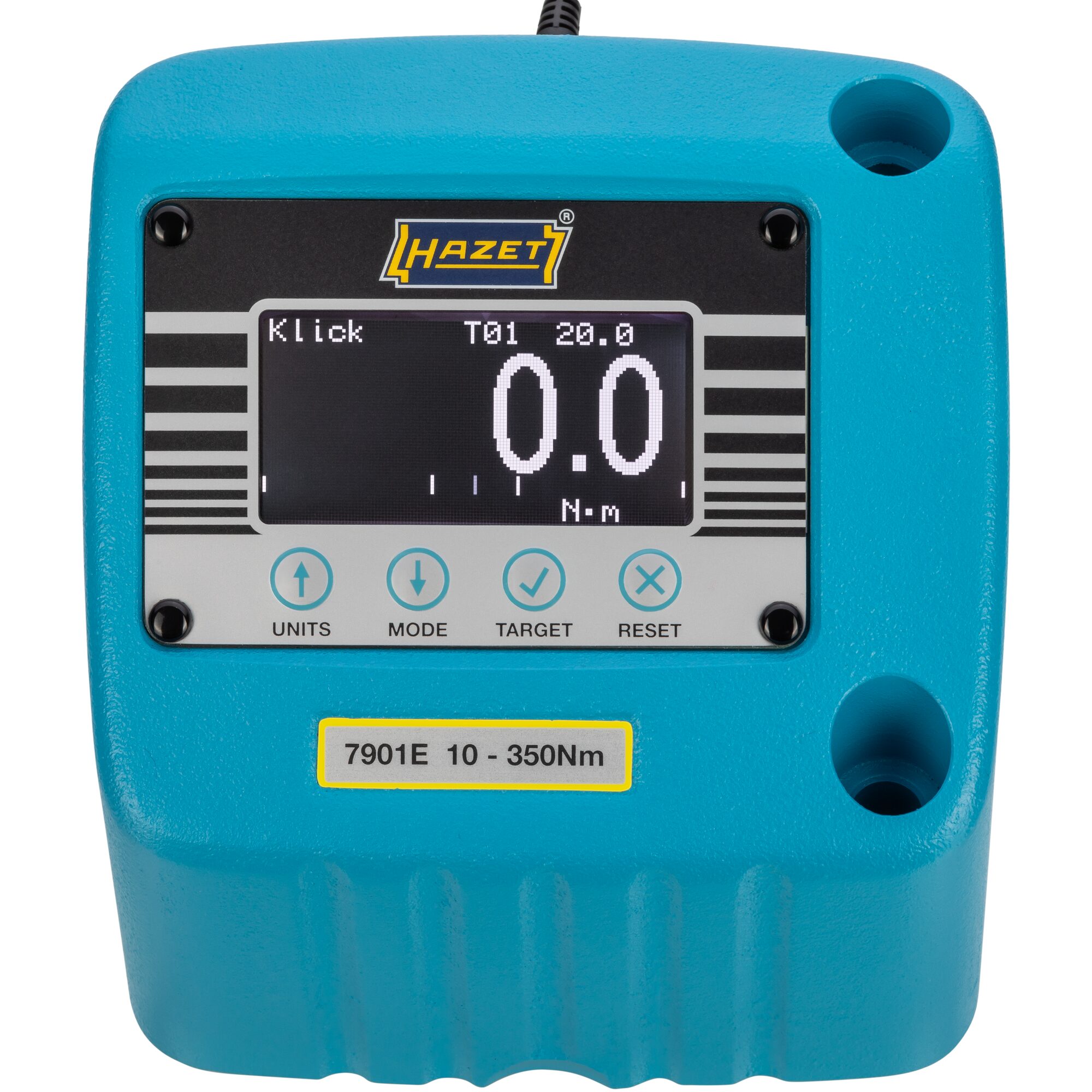

Giant display with 17 mm large digits

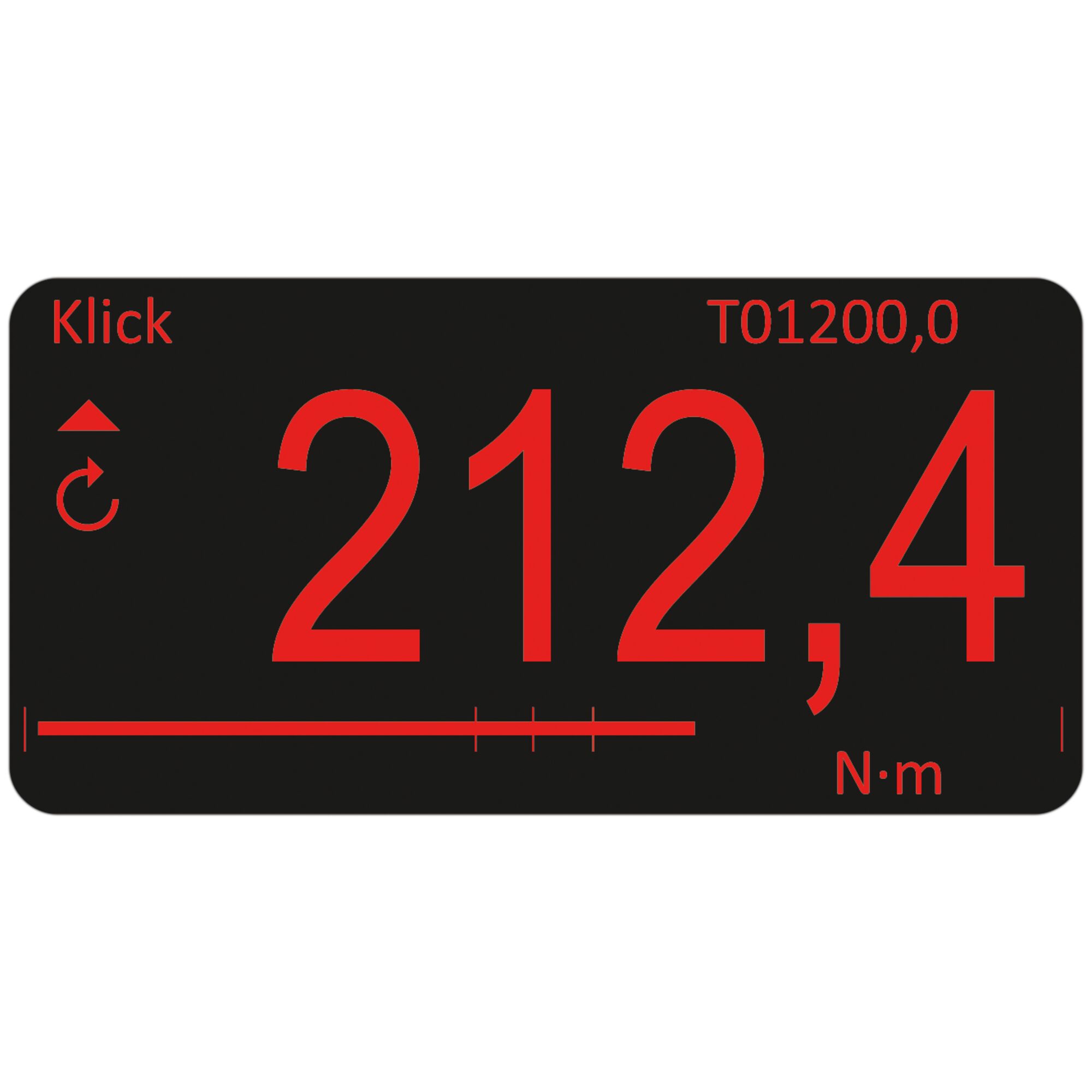

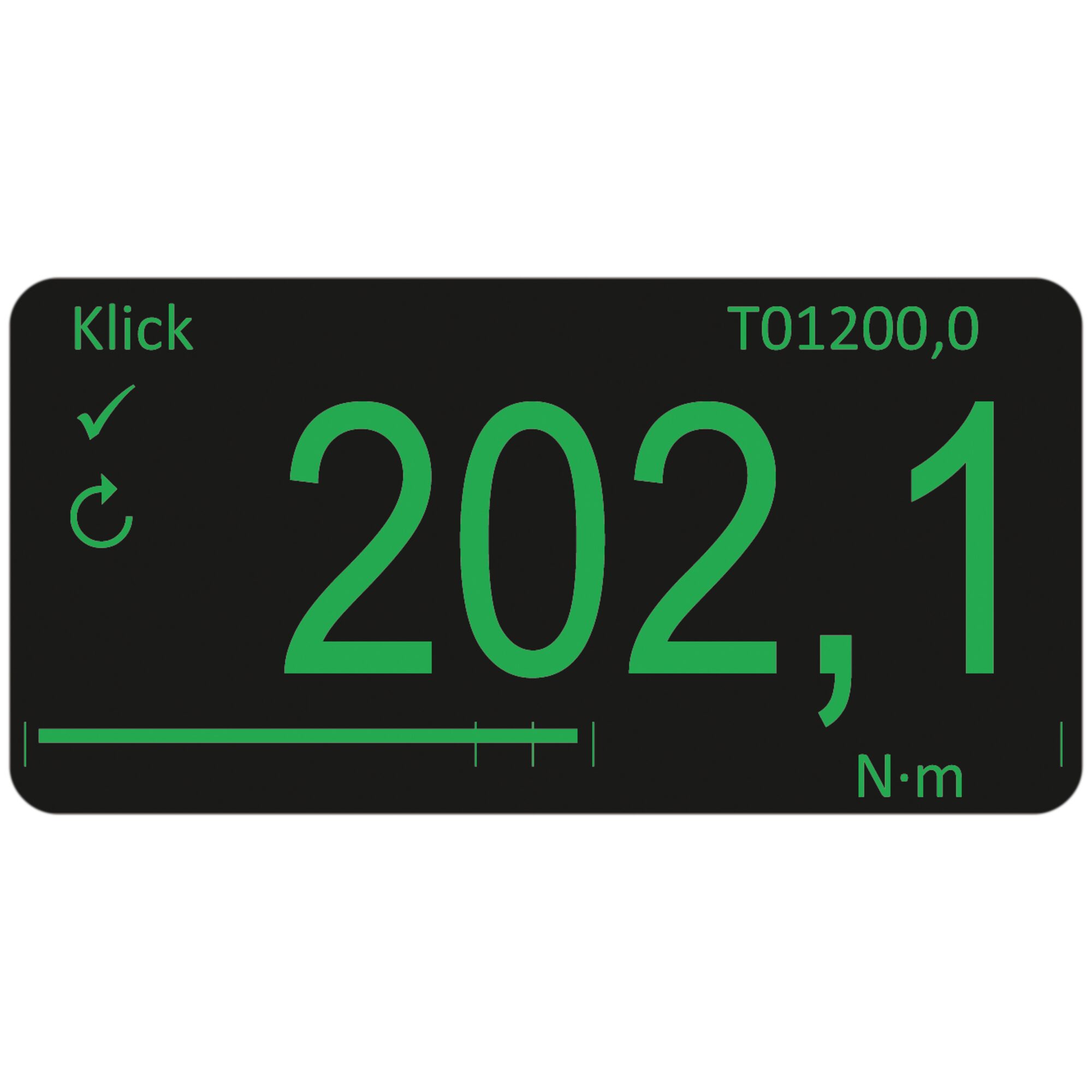

Traffic light function for evaluation of the measured value PLUS audible signal
Calibrated measuring range in the clockwise direction of rotation
Fixed internal square socket ∙ 12.5 = 1⁄2˝
Switchable torque display in Nm ∙ dNm ∙ kgfm ∙ kgfcm ∙ lbf.ft ∙ lbf.in ∙ ft.lb ∙ in.lb
Configurable selection of desired units

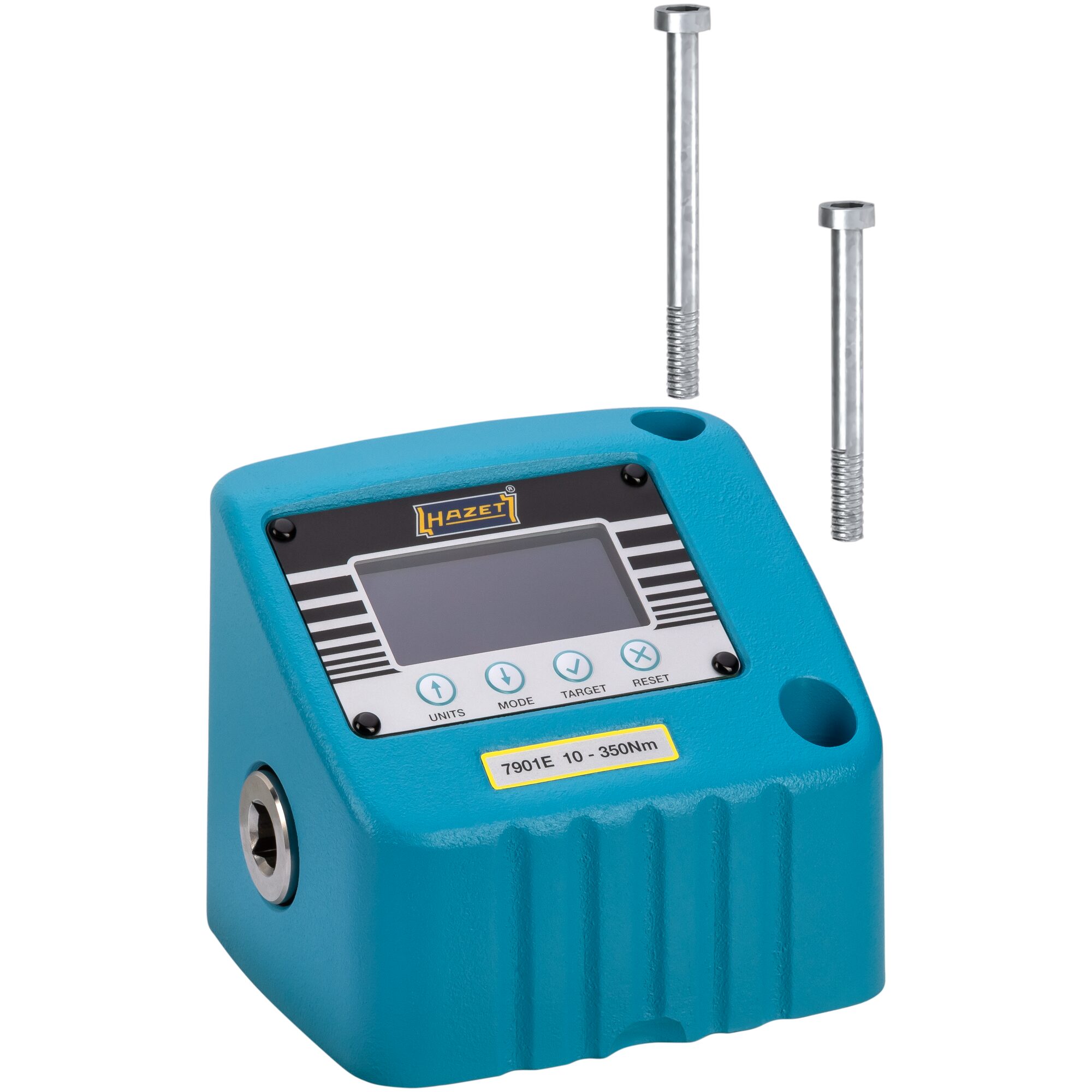

Fixing material (not included in the scope of delivery): hexagon socket screws ISO 4762 – M10 – 12.9

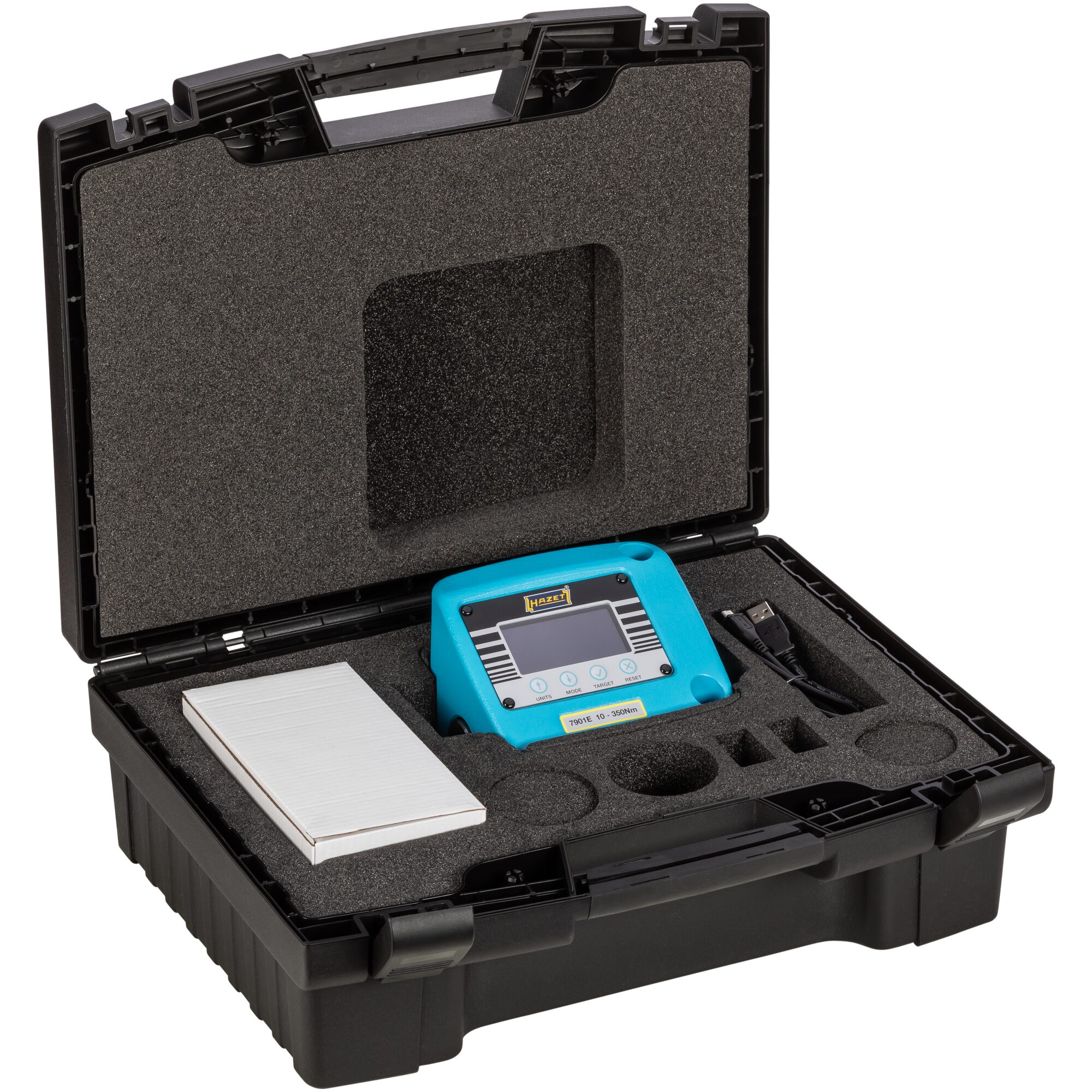

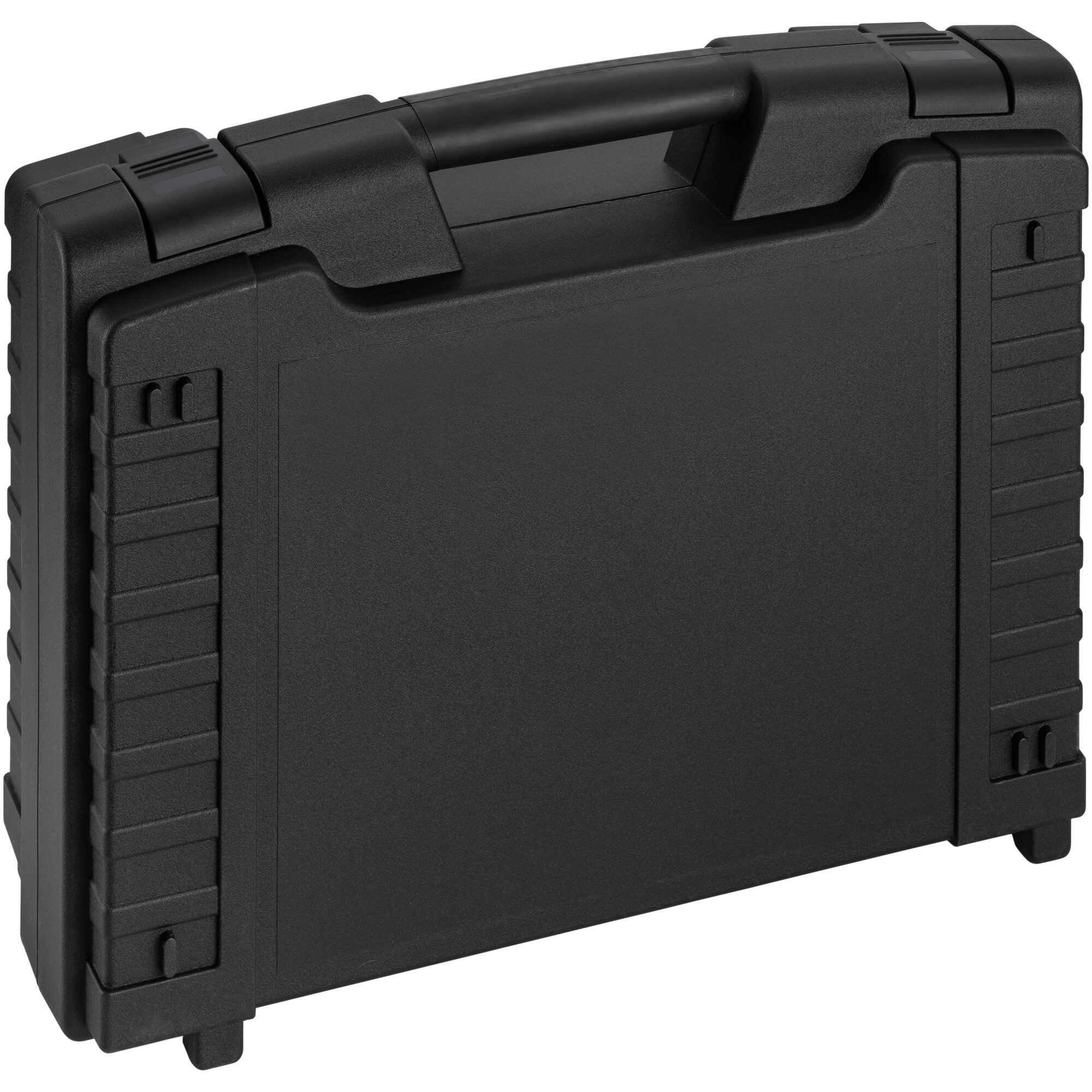

Gross weight including plastic case and accessories approx. 3.9 kg
Easy entry of up to 15 different target values and the respective permissible tolerance in the range of ± 1 % to ± 15%
Precision ± 1% (maximum display deviation)
Digital readouts ∙ 3 measurement procedures
Automatic click point detection (first peak ∙ click)
Peak value measurement (final peak ∙ dial)
Tracking measurement / display value (track)
